Aluminum Copy Router Machine High Efficiency Multi-Head Combination Automatic Drilling Machine

Shandong Weike CNC Machinery Co. LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Aluminum Copy Router Machine High Efficiency Multi-Head Combination Automatic Drilling Machine

  • 1
  • 2
  • 3

Brand Name : WEIKE

Model Number : WDZZ6-13

Certification : CE , ISO9001

Place of Origin : CHINA

MOQ : 1 set

Price : USD7800- USD 8600

Payment Terms : L/C, T/T, Western Union,

Supply Ability : 50 stes per month

Delivery Time : 25-35 work days

Packaging Details : 1. Inside is plastic film. 2. Under the equipment is the iron tray fixed, or choose wooden box packing

Material : Aluminium,UPVC ,PVC

Max distance between two drilling holes : 5000mm

Min distance between each group holes : 300mm

Processing profile height (max) : 140mm

Contact Now

1. Feartures

1. Used for drilling holes on aluminum profiles and curtain wall profiles.Apply to volume-produce

2 Max processing profile section size is 250 x 250 mm,max processing length is 5000mm

3 Multi-head boring anchor can be fixed to meet multi-holes processing requirement.

4 Feeding system adopts airdraulic-damping cylinder,which ensured smooth feeding

5 Imported PLC control system with steady capability

Aluminum Copy Router Machine High Efficiency Multi-Head Combination Automatic Drilling Machine

Product Parameter
Power supply 380V/50Hz
Power 6×1.5KW
Motor speed 2800r/min
Working pressure 0.5~0.8MPa
Drill clamping diameter 3-16 mm
Processing profile height (max) 140mm
Dimensions 6000×1100×1850mm
Weight 1200Kg




2.Other products
Aluminum Copy Router Machine High Efficiency Multi-Head Combination Automatic Drilling Machine

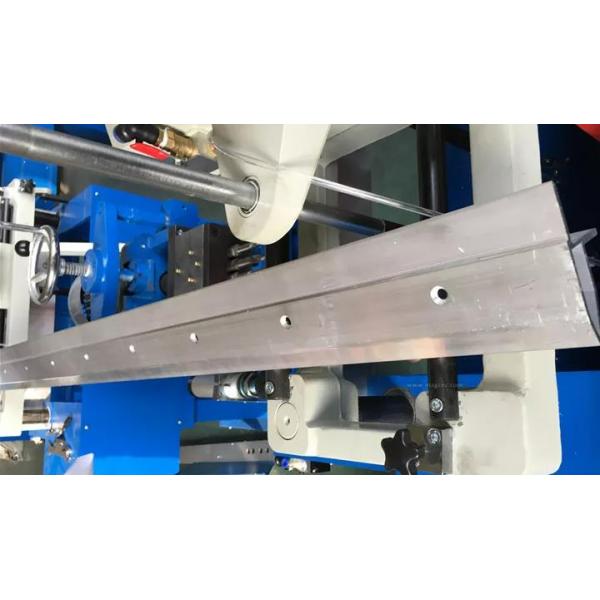

3.Mechanical details and after working samples Aluminum Copy Router Machine High Efficiency Multi-Head Combination Automatic Drilling Machine

Aluminum Copy Router Machine High Efficiency Multi-Head Combination Automatic Drilling Machine

Aluminum Copy Router Machine High Efficiency Multi-Head Combination Automatic Drilling Machine




4. Workshop showing

Aluminum Copy Router Machine High Efficiency Multi-Head Combination Automatic Drilling Machine

Aluminum Copy Router Machine High Efficiency Multi-Head Combination Automatic Drilling Machine

Aluminum Copy Router Machine High Efficiency Multi-Head Combination Automatic Drilling Machine

Aluminum Copy Router Machine High Efficiency Multi-Head Combination Automatic Drilling Machine

5. Our services

1.If need engineer go to oversea training: Client afford transportation and accommodation, Engineer salary is 100USD/Day.

2. Provide free training when come to factory study.

Because of Covid-19, we provide:
1. Before delivery: Machine operate manual, program software user manual and English videos.

2. Before delivery: Face to face video training online between your operator and our engineer.

3. After delivery: Will video guild you how to install and adjust machine. Also we can online control your machine to show you how to work.

Machine Operate Manual Will Be Provided

Machine Operate Video Will Be Provided

Aluminum Copy Router Machine High Efficiency Multi-Head Combination Automatic Drilling Machine

6.Packaging Details

1. Inside is plastic film.


2. Under the equipment is the iron tray fixed, or choose wooden box packing


3. Can also be based on customer needs for packaging QingDao Port

Aluminum Copy Router Machine High Efficiency Multi-Head Combination Automatic Drilling Machine


7. Any Questions?

1.Are there training instructions?
2. How long is the warranty?
3. Why is it called Multi-Head Combined drilling milling machine ? What are the functions?
4. Can be customized according to my needs?
5. What brand are the accessories?
If you also have these questions, you can contact me for more details.

WEIKE provide machine

More important is provide

Solutions
